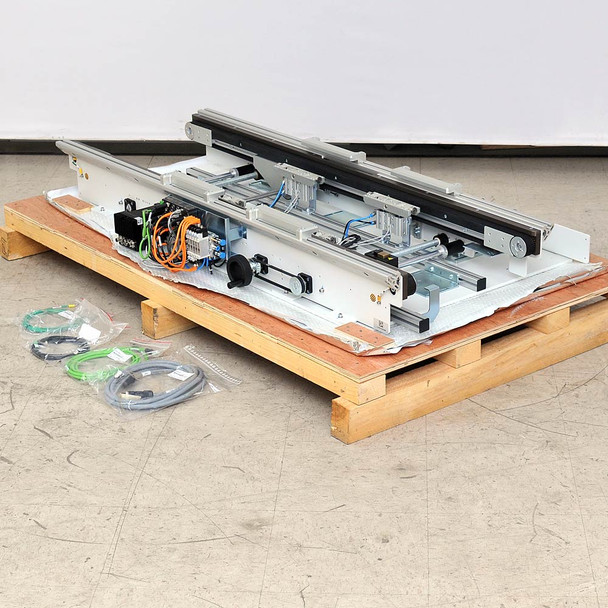

1.4m Open-Center 1" Edge Belt Conveyor with Servotronix Motor, 3 Stops

Manufacturer: Unbranded

Model: DOES NOT APPLY

Condition: New Other. Comes in opened original crate.  This item is in Good cosmetic condition with only minor scuffs here and there. The photos show the exact item(s) the buyer will receive.

Notes: No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) 1.4m Open-center Conveyor Module
• (1) Servotronix Motor Power cable
• (1) Ethercat cable
• (1) Ground Cable

Specifications:

• Open-center edge-belted conveyor
• 140 cm total length
• Manual width adjustment
• As-configured belt opening 40cm wide
• If accessories were removed, possibly 8cm to 56cm opening
• 1" Wide belts
• Belts are gear driven by Servotronix stepIM motor
• Motor: Servotronix stepIM series
  • Model: IST-34M26EC100000-BM
  • P/N: PRDr34SBM6520100M-01
  • BUS input: 14-75 VDC
  • Auxiliary input: 6-24 VDC
  • Holding torque: 5.0 Nm
• Width adjustment has (2) drive screws and (2) LM-16UU ball bearing linear shafts to maintain parallel
• Pneumatic stop gates at three positions (Rexroth 3842530630), with sensors
• Pneumatic "Tray Locks" on both sides, (SMC JMGPM25-20 air cylinders)
  • Tray locks are completely outside the belt area, do not block the belts at all
  • Tray locks have about 2cm under-stop clearance
  • Tray locks have autoswitches for up and down
• Entire assembly has a flat bottom plate, simple to integrate in your setting
• Approximately 35" wide
• Approximately 14cm from mounting plate to top of conveyor belts
• (3) Beckhoff D-33415 EtherCAT connection terminal gives central location to hook up all the switches & sensors
• (5) Festo VUVG-B10 pneumatic valves on VTUG manifold
• T-slot mounting rails for accessories
• Manufactured in 2021
