Description

Manufacturer: Keyence

Model: BL-601

Condition: Used. Comes in non-original packaging. These sensors are in good condition with minor scuffs and scratches from previous use.
The photos show the exact item(s) the buyer will receive.

Notes: These sensors were removed from a working system and have not been tested since their removal.
No manuals, cords/cables, or additional items are included if not listed or shown.

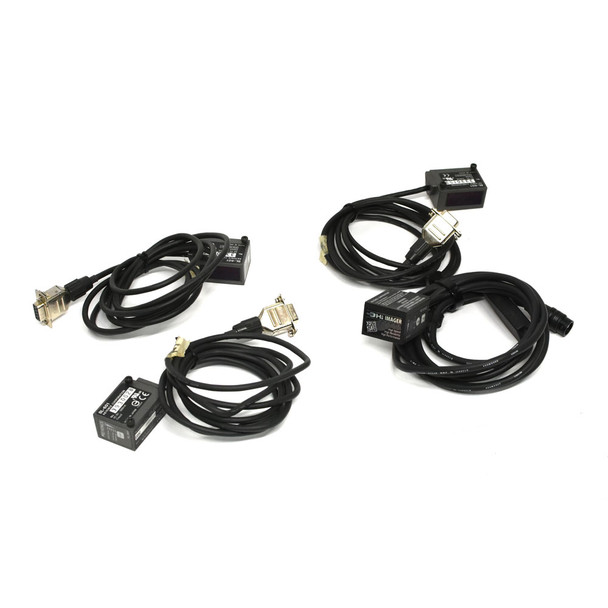

Included:

(3) Keyence BL-601 Barcode Scanner - 5VDC
(1) Keyence SR-610 3HI Imager - 5VDC

Specifications:

Manufacturer: Keyence
Model: BL-601
Description: Barcode Scanner
- Environmental resistance
- Ambient temperature: 0 to +45 °C 32 to 113 °F
- Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions
Manufacturer: Keyence
Model: BL-610
Description:3HI Imager
Type: Middle-range
Laser pointer
- Light source: Visible semiconductor laser (wavelength: 660 nm)
- Output: 90 µW
- Pulse duration: 200 µs
- Laser class: Class 1 Laser Product (IEC60825-1, FDA (CDRH) Part1040.10)*1*2
- Light source: High-intensity red LED
Reading
- Supported codes
  - Barcode: GS1 Databar; CODE39; ITF; Industrial 2 of 5; NW-7 (Codabar); JAN, EAN, UPC; CODE128; COOP 2 of 5; CODE93
  - 2D code: QR code, Micro QR code, DataMatrix, PDF417, MicroPDF417, MaxiCode, composite symbol (Composite Component)
- Minimum resolution
  - Barcode: 0.127 mm 0.005"
  - 2D code: 0.25 mm 0.01"
- Reading distance (typical examples)
  - DataMatrix: 40 mm to 173 mm 1.57" to 6.81" (cell size: 0.508 mm 0.02")
  - QR: 35 mm to 188 mm 1.38" to 7.40" (cell size: 0.508 mm 0.02")
  - Barcode: 44 mm 1.73" to 205 mm 8.07" (narrow bar width: 0.508 mm 0.02")
- Focal point: 100mm 3.94”
- Reading view range (at the focal length): 70.6 mm 2.78" x 45.0 mm 1.77"
- Reading time (Typical): 21 ms (focal length for 21 × 21 QR codes)
Terminal block
- Input
  - Number of inputs: 2 (IN1 and IN2)
  - Input type: No-voltage input
- Output
  - Number of outputs: 4 (OUT1, OUT2, OUT3, and OUT4)
  - Output type: NPN open collector
  - Rated load: 24 VDC, 30 mA
  - Leakage current when OFF: 0.1mA or less
  - Residual voltage when ON: 0.8V or less
- Rating
  - Power voltage: 5 VDC +5 %, -10 %
  - Current consumption: 630 mA or less

CDN Systems LLC, DBA Doug Deals, is not an authorized distributor or affiliated with the manufacturer of this product. Original manufacturer's warranty does not apply.
