Acces PCI-DIO-48S Parallel Digital I/O Card, 48 Bits, for PCI-Bus Controllers

Manufacturer: Acces

Model: PCI-DIO-48S

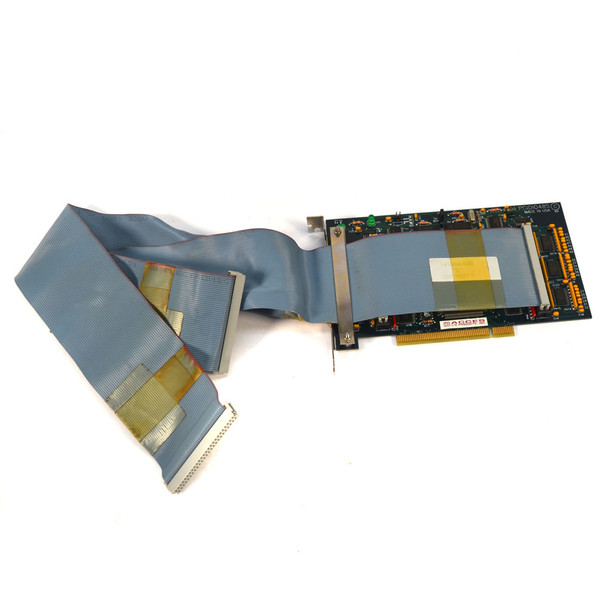

Condition: Used. Comes in non-original packaging. This PCI bus controller is in great condition with minor scuffs and scratches from previous installments but nothing that would affect functionality. The photos show the exact item(s) the buyer will receive.

Notes: This PCI bus controller was removed from a working computer system and has not been tested since its removal.
No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) Acces PCI-DIO-48S Parallel Digital I/O Card, 48 Bits, for PCI-Bus Controllers

Specifications:

• Manufacturer: Acces
• Model: PCI-DIO-48S
• Description: Bus Controller
• Universal PCI, PCI-X, 3.3V, and 5V compatible
• 24 or 48 bits of digital I/O
• Interrupt generation on input change-of-state (Model 48S)
• All I/O lines buffered on the card
• I/O buffers can be enabled/disabled under program control
• Four- and eight-bit ports independently selectable for I/O
• Pull-ups on I/O lines
• +5V supply available to the user
• Compatible with industry-standard I/O racks like Gordos, Opto-22, Potter & Brumfield, etc.
• No base address or IRQ switches to set
• Digital Inputs (TTL Compatible)
  • Logic High: 2.0 to 5.0 VDC
  • Logic Low: -0.5 to +0.8 VDC
  • Input Load (Hi): 20 uA
  • Input Load (Lo): -200 uA
• Digital Outputs
  • Logic High: 2.0 VDC min., source 32 mA
  • Logic Low: 0.55 VDC max., sink 64 mA
• Power Output
  • +5 VDC from computer bus (ext. 1A fast-blow fuse recommended)
• Power Required
  • +5 VDC at 200 mA typical
