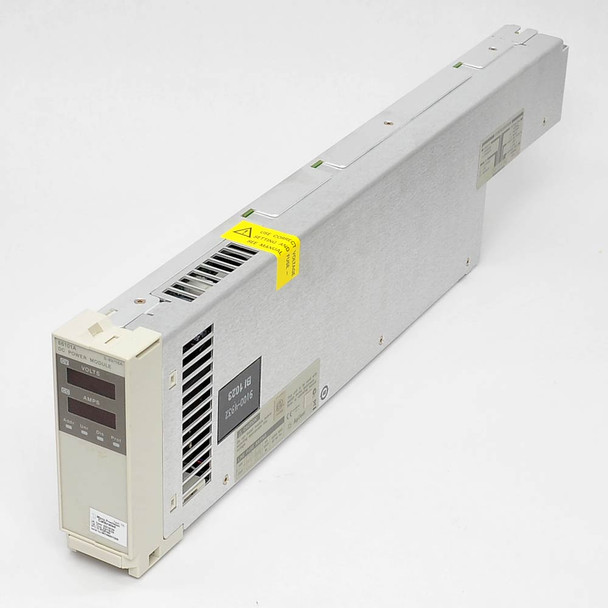

Agilent 66101A MPS DC Power Supply Module 0-8 Volts 0-18 Amps Programmable

Manufacturer: Agilent

Model: 66101A

Condition: Used. Comes in non-original packaging.  This module is in Fair cosmetic condition with lots of scuffs/scratches and some residues from prior use.
Cosmetic appearance may vary slightly from pictured unit(s).

Notes: This unit was tested in our 66000A mainframe, and we verified it gives the full 8V at 16A with no difficulties.  The displays are bright and clear.  No other testing was done.
No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) Agilent 66101A DC Power Module

Specifications:

• Manufacturer: Agilent Technologies
• Model: 66101A
• DC power module
• Regulated, adjustable, programmable
• Single output
• For HP/Agilent/Keysight 66000A series MPS mainframes
• Voltage range: 0 ... 8 V DC
• Current range: 0 ... 16 A
• Power rating: 128 Watts
• Programming accuracy rating: 3 mV, 6mA
• Ripple and noise rating: CV 2 mV RMS, 5 mV p-p, CC 8 mA RMS
• Readback accuracy rating: 2 mV, 6 mA
• Local or remote sensing
• Output terminal isolation: +/- 240 V DC
• Compatible with output connectors 5060-3386, 5060-3387, or 5060-3351 (not included)
