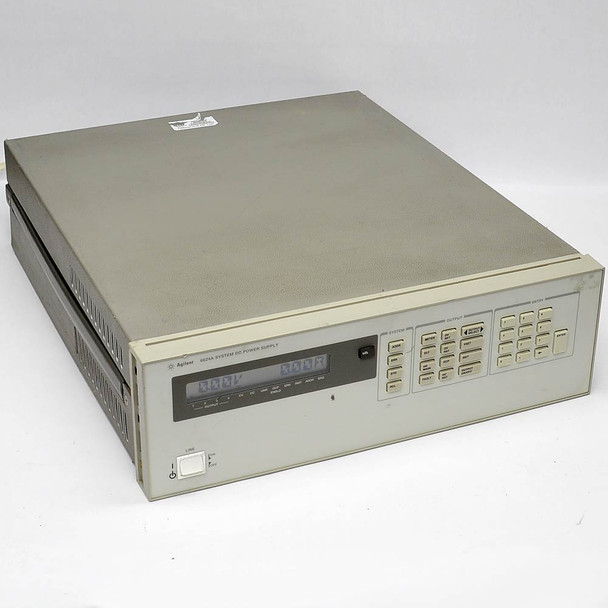

Agilent 6624A System DC Power Supply 4x 40W Outputs 0-7V, 20V, 50V 50799 - Parts

Manufacturer: Agilent

Model: 6624A

Condition: For Parts or Not Working. Comes in non-original packaging. This power supply is in fair cosmetic condition with lots of minor scuffs/scratches/stains from prior use.  The keyboard is loose internally.  The left side is so loose that it's hard to actuate the buttons and your fingertip goes into the holes as shown.  The broken-off bits can be heard rattling around in the unit.  A few output terminal screws are missing.  The plastic brackets that hide the ends of the handles are cracked and broken.
The photos show the exact item(s) the buyer will receive.

Notes: This supply is in PARTIAL working condition.  We tested all four channels and verified they will give maximum rated voltage at no load.  The display works.  The fan works.  We are not able to test the HP-IB interface.  No other testing was done.  This is being sold AS/IS.
No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) Agilent 6624A System DC Power Supply

Specifications:

• Manufacturer: Agilent Technologies
• Model: 6624A
• System DC Power Supply
• Four, 40 Watt outputs
• Maximum Outputs:
  • Channels 1 & 2: 7V 5A / 20V 2A
  • Channels 3 & 4: 20V 2A / 50V 0.8A
• Two ranges for each output (0-7V and 0-20V, 0-20V and 0-50V)
• Individually programmable outputs
• Remote sense capable
• GPIB communications
• Side handles (no feet)
• Power input requirement: 100/120/220/240 50/60Hz

AS-IS

• No returns - No refunds - No exchanges
• By purchasing this item, you are agreeing to not seek reimbursement should the item not function to the manufacturer's specifications.
• Read the notes carefully to ensure you are buying something you can use
• See complete terms

CDN Systems LLC, DBA Doug Deals, is not an authorized distributor or affiliated with the manufacturer of this product. Original manufacturer's warranty does not apply.
