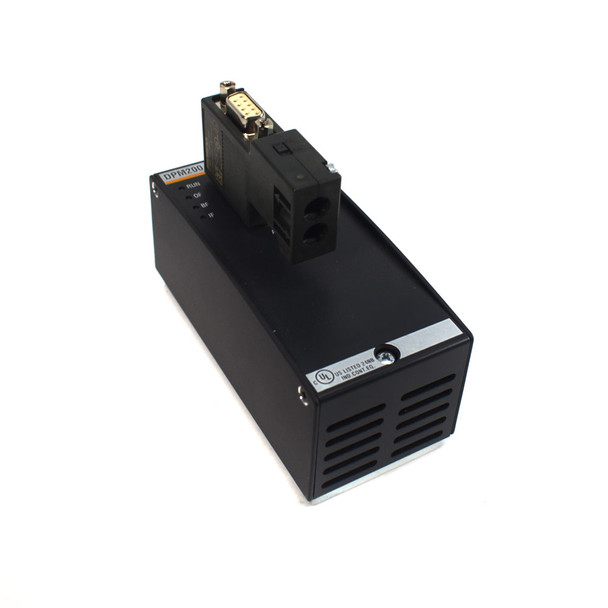

Bachmann Electronic DPM200 PROFIBUS Distributed Peripherals Master Module

Manufacturer: Bachmann Electronic

Model: DPM200

Condition: Used. Comes in non-original packaging. This module is in good condition with minor scuffs and scratches from previous use.
The photos show the exact item(s) the buyer will receive.

Notes: This module was hooked up to 24VDC and went through its startup-config.  Lights on the unit came on to indicate normal operation. No further testing was performed.
No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) Bachmann Electronic DPM200 PROFIBUS Distributed Peripherals Master Module

Specifications:

• Manufacturer: Bachmann Electronic
• Model: DPM200
• Description: Distributed Peripherals Master Module
• PROFIBUS DP Master
  • Large process image 8 kB x 16 DPM
  • Firmware Update via SolutionCenter is possible
  • Max. number of masters 3 per M1 controller
  • Max. number of slaves 32 without repeater, 125 with repeater
  • PROFIBUS ® Standard V0
  • Data length in the DPM 732 bytes per slave
  • Current consumption 400 mA / 5 VDC
• Interface
  • Transfer rate 9.6 k to 12 Mbaud
  • Connection 2x 9-pin D-Sub female connectors
  • Pin assignment By EN 50170
  • Signal level By RS485 standard
  • Galvanic isolation,
  • Interfaces to the system
  • 500 V

Hassle Free Returns

• DougDeals will pay return shipping if the item needs to be returned for any reason
• Return window is 30 days from delivery date
• See complete terms

CDN Systems LLC, DBA Doug Deals, is not an authorized distributor or affiliated with the manufacturer of this product. Original manufacturer's warranty does not apply.
