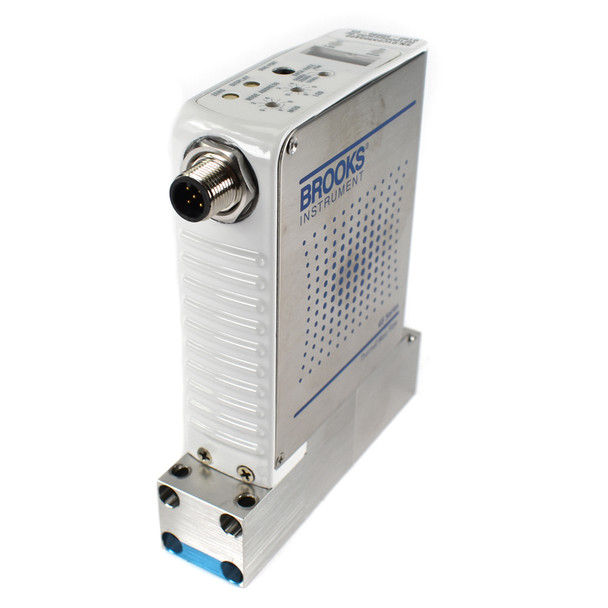

Brooks Instrument GF125CXXC Mass Flow Controller MFC H2 1000SCCM 1SLM

Manufacturer: Brooks Instrument

Model: GF125CXXC

Condition: Used. This MFC is in good cosmetic condition with minor scuffs and scratches from normal use.  The Process Gas/Flow sticker on the top of the MFC is different from the Gas identification on the side label.  We have defined the gas on the side label as calibration gas/flow and the top customer sticker as process gas/flow.  Comes in non-original packaging.
The photos show the exact item(s) the buyer will receive.

Notes: This MFC was removed from decommissioned equipment and has not been tested.
No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) Brooks Instrument GF125CXXC Mass Flow Controller MFC H2 1000SCCM 1SLM

Specifications:

• Manufacturer: Brooks Instrument
• Model: GF125CXXC
• Expanded Model: GF125CXXC-SH452.6L-CXVODX-1121AX-000
• Description: Thermal Mass Flow Controller MFC
  • Series: GF Series
  • Process Gas: H2 Hydrogen
  • Process Flow Rate: 1000SCCM 1SLM
  • Calibration Gas: N2 Nitrogen
  • Calibration Flow Rate: 2600SCCM 2.6SLM
  • Primary Connector: Device Net
  • Diagnostic Port: RS-485 via 2.5mm Jack
  • Seal Material: Metal
  • Valve Normally Closed
  • Gas & Range Configurable: Yes
  • Status Light
    • MFC Health
    • Network Status
  • Alarms
    • Sensor Output
    • Control Valve Output
    • Over Temperature
    • Power Surge/Sag
    • Network Interruption
  • Mounting: Surface Mount
  • Seals: C-Seals
  • Footprint: 1.125"
  • BIN: SH44
  • Resp.: 400.00 mseconds
  • Overshoot:  2%/FS
  • CSR: 1121
  • Ref:  0 Degree C/760Torr
  • Version: 1.28
  • Cal Gas Accuracy: 1% Setpoint
  • Brooks PN: GF125C-203331
  • Customer PN: 0190-49895-03
