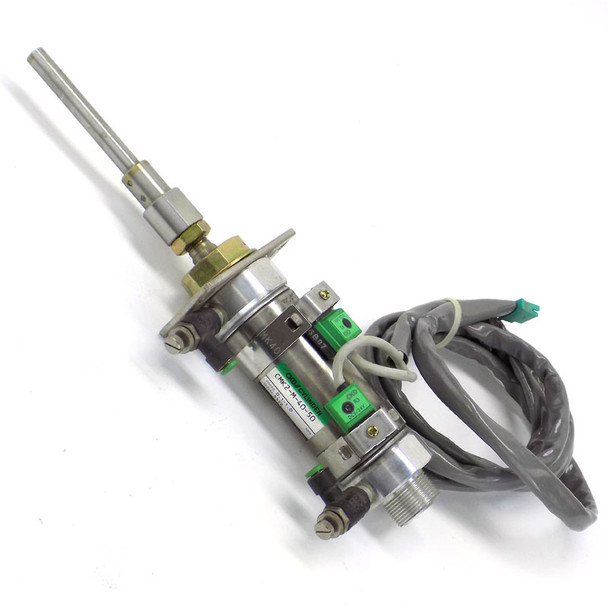

CKD CMK2-M-40-50 Cylinder & (2) CKD R3 DC5/24V Sensors & (2) CKD SC3G-6-4 Valves

Manufacturer: CKD

Model: Does Not Apply

Condition: Used. Comes in non-original packaging.  It is in good cosmetic condition with minor blemishes that do not its functionality. Cosmetic appearance may vary slightly from pictured unit(s).

Notes: This unit was pulled from a decommissioned system, and was not tested after removal. No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) CKD CMK2-M-40-50 Double acting, non-rotating type pneumatic cylinder
• (2) CKD R3 DC5/24V3 wire proximity switches
• (2) CKD SC3G-6-4 Manually Adjustable Pneumatic Speed Controller Valves

Specifications:

• Manufacturer: CKD
• Model: CMK2-M-40-50
  • Description: Double acting, non-rotating type pneumatic cylinder
  • Bore Diameter: 40 mm
  • Stroke Length: 50 mm
  • Pressure Range: 0.1 to 1.0 MPa
• Model: R3 DC5/24V
  • Description: 3 wire proximity switch
  • Cable Length: 48"
• Model: SC3G-6-4
  • Description: Manually Adjustable Pneumatic Speed Controller Valves
  • Size: 4mm x 1/8"
