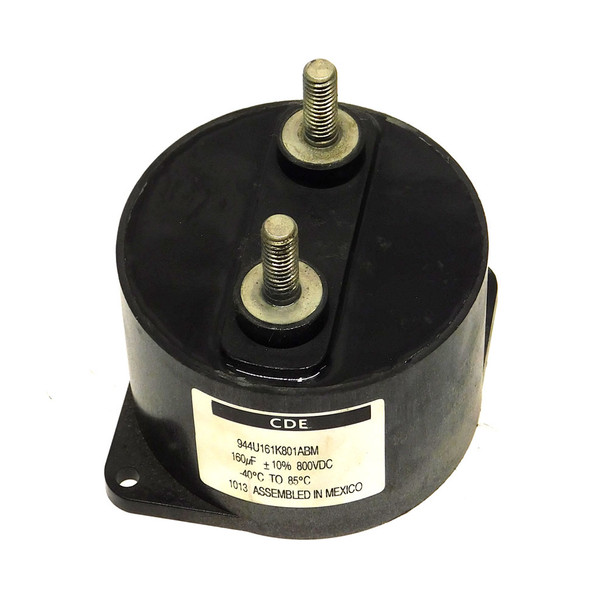

Cornell Dubilier CDE 944U161K801ABM 160uF 800VDC Polypropylene Film Capacitor

Manufacturer: Cornell Dublier

Model: CDE 944U161K801ABM

Condition: New Other. Comes in non-original packaging. The capacitor is unused. Cosmetic appearance may vary slightly from pictured unit(s).

Notes: No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) NEW Cornell Dubilier CDE 944U161K801ABM 160uF 800VDC Polypropylene Film Capacitor

Specifications:

• Manufacturer: Cornell Dubilier
• Model: CDE 944U161K801ABM
  • Polypropylene Film Capacitor
  • Capacitance: 160 uF
  • DC Voltage Rating: 800 VDC
  • Termination: Stud Threaded
  • Lead Spacing: 45 mm
  • Dielectric: Polypropylene
  • Tolerance: +/- 10%
  • Operating Temperature Range: -40 C To 85 C
  • Life: 5,000 Hours At 85 C Rated Voltage
  • Diameter: 84.5 mm
  • Height: 51 mm
  • Terminal: M8 Thread Stud
  • Max RMS Current: 74A At 55 C
  • Max RMS Voltage: 230 VAC
  • Weight: 0.95 lbs
