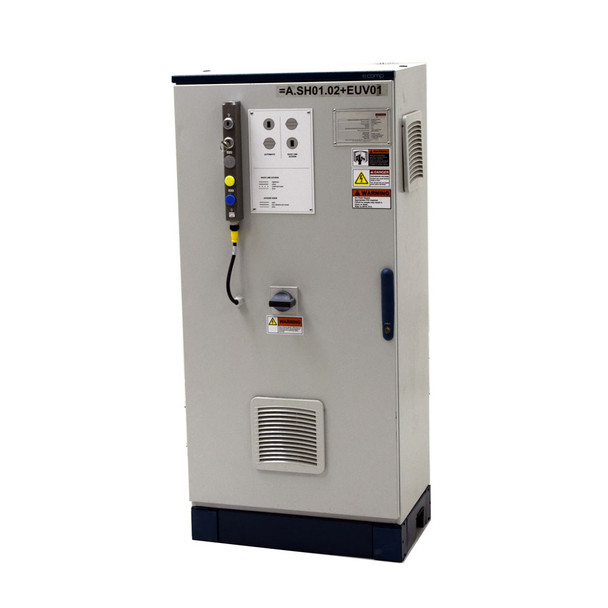

ETA ENUX ECOMP Industrial Automation Enclosure PLC Cabinet 1-Door 1200x600x400mm

Manufacturer: ETA

Model: ECOMP61240

Condition: Used. Comes in non-original packaging. The enclosure is in good, used condition with some scuffs and scratches on the exterior of the cabinet.
The photos show the exact item(s) the buyer will receive.

Notes: The enclosure was removed from a decommissioned automation setup. The cabinet door opens and closes with no obstruction. There is a small twist lock mechanism on the front of the cabinet that has the center piece which is broken off, as shown in the photos.  One of the keys for the fortress interlock is included but not the second key required for the interlock operation. No further testing was performed.
No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) ETA ECOMP61240 Industrial Automation Enclosure Single Door 1200x600x400mm
• (1) Siemens 3RV2926-2B Rotary Operator Mechanism
• (1) Fortress Interlocks THCABSNSSLYLBQ7 Safety Guard Operator Interlock w/ 1 Key
• Various DIN Mounted I/O Terminal Blocks

Specifications:

• Manufacturer: ETA
• Series: E NUX
• Model: ECOMP61240
• Supplementary Product ID:
  • Manufacturer: Jobstl & Liska Group
  • Model: =A.SH01.01+EUV01
• Industrial Automation Enclosure
  • Single Door Design
  • Phase: 3PH + GND
  • Dimensions: 1200x600x400mm, ~51.75" x 23.75" x 15.75"
  • Max Voltage: 480Y/277V, Solid Grounded WYE
  • Total FLA: 5A
  • Overcurrent Protection Turns Off At: 20 Amps
  • Type: 1, 12 Enclosure
  • Short Circuit Current Rating: 5kA RMS Symmetrical
• Manufacturer: Siemens
• Model: 3RV2926-2B
  • Door Coupling Rotary Operator Switch
  • Compatibility: Siemens SIRIUS Circuit Breakers
  • Operating Temperature: -20-70C
• Manufacturer: Fortress Interlocks
• Model: THCABSNSSLYLBQ7
  • Safety Guard Operator interlock
  • Voltage: 24V
  • Current Rating: 1A
  • Type: Switching Circuits
  • 100mA
  • F=2500N
  • IP65
  • TUV Certified
  • 1 Key Included
