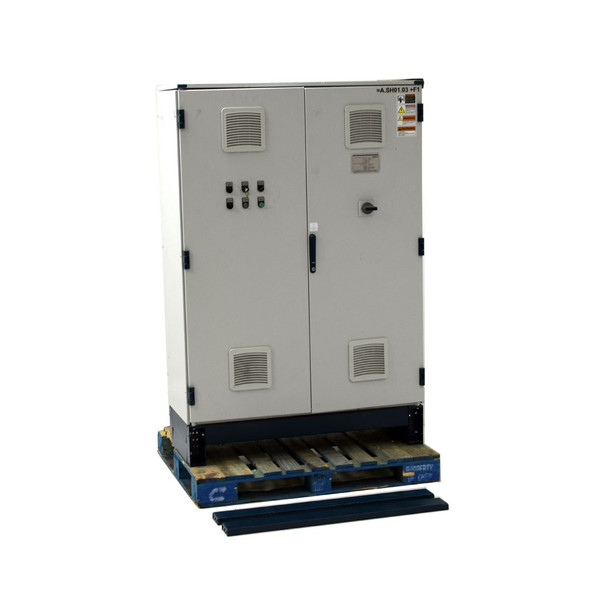

ETA ENUX121805PR Industrial Automation Control Enclosure 71.5" x 47.25" x 20.5"

Manufacturer: ETA

Model: ENUX121805PR

Condition: Used. Comes in non-original packaging. The enclosure is in good, used condition with some minor scuffs, scratches, and a couple of drilled holes on the upper area of the side of the cabinet. There is no structural damage to the cabinet and no major dents.
The photos show the exact item(s) the buyer will receive.

Notes: The cabinet was removed from a decommissioned setup. The cabinet doors open, close, and lock securely with no obstruction. One key is included with the unit. No further testing was performed.
No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) ETA ENUX121805PR Industrial Automation Control Enclosure 71.5" x 47.25" x 20.5"
• (1) Siemens 3VL1105-1KM30-0AA0 Type CG Circuit Breaker 3-Pole 50A
• (1) Siemens 3VL9300-3HF06 Rotary Operator Mechanism
• Various DIN Mounted I/O Terminal Blocks

Specifications:

• Manufacturer: ETA
• Model: ENUX121805PR
  • Supplementary Product ID:
• Manufacturer: Knapp
• Model: +A.SH01.03+F1
• Industrial Automation Control Enclosure
  • Designation: Type 1,12
  • Degree Of Protection: IP55
  • Total Outer Dimensions: 1800mm x 1200mm x 500mm (1600mm Without Base Stand), 71.5" x 47.25" x 20.5"
  • Voltage: 480Y/220V
  • Phase: 3 + Ground
  • Frequency: 60 Hz
  • Total FLA: 30A
  • Max Motor FLA: 18A
  • Overcurrent Protection: 40A
  • Short Circuit Current Rating: 10kA RMS
  • Construction: High-Strength Low-Alloy Sheet Steel
  • Main Circuit Breaker
• Manufacturer: Siemens
• Model: 3VL1105-1KM30-0AA0
• Type CG Circuit Breaker
  • Rated Operational Voltage: 690V
  • Surge Rated Value: 8kV
  • IP20
  • 3-Pole
  • Current Rating: 50A
  • Dimensions: 157.5mm x 106.5mm x 104.5mm
• Manufacturer: Siemens
• Model: 3VL9300-3HF06
• Rotary Operator Mechanism
  • 3VA
  • UL Listed Component
