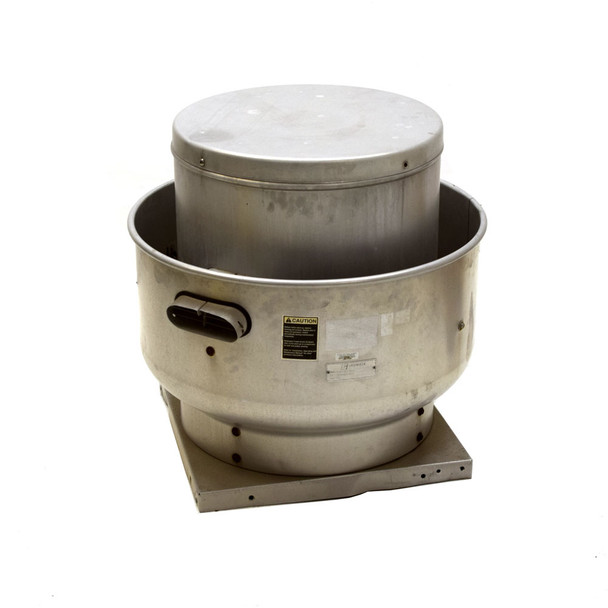

Greenheck CUBE-161-10-G Centrifugal Upblast 22" x 22" Roof Exhaust Fan 115V 1PH

Manufacturer: Greenheck

Model: CUBE-161-10-G

Condition: Used. Comes in non-original packaging. The fan is in used condition with some minor dents as well as some scuffs and scratches from the previous installation.
The photos show the exact item(s) the buyer will receive.

Notes: The fan was powered on using a standard 115VAC power cord connected to the on/off switch supplied with the cabinet. The impeller spun with no obstruction and the fan performed as intended. No further testing was performed after removal.

Note: The belt is intact and operates, but has some normal wear from operation and may need replacement at some point in the near future.
No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) Greenheck CUBE-161-10-G Centrifugal Upblast Exhaust Fan 115/208-230VAC

Specifications:

• Manufacturer: Greenheck
• Model: CUBE-161-10-G
• Mark: KEF
• Centrifugal Upblast Exhaust Fan
  • Design: Belt Drive
  • Horsepower: 1
  • Voltage: 115/208-230VAC
  • Phase: Single Phase
  • Base Diemensions: 22" x 22"
  • Recommended Roof Opening: 18.5" x 18.5"
  • CFM Range: 2615-4111
  • Roof Or Wall Mountable
  • Overall Diameter: 28 7/8"
  • Bearing Size: 3/4"
  • Impeller Diameter: 17"
  • Height From Top Of Base: 29.75"
  • Fan Speed Range: 1150-1430RPM
