Description

Watch Video

Video will open in a new window
Using the eBay App? Paste link into a browser window:

Manufacturer: IPG Photonics

Model: YLR-30-Y11

Condition: Used. Comes in non-original packaging. This laser is in good cosmetic condition, with only minor scuffs from prior use. The optics are clear and clean.
Cosmetic appearance may vary slightly from pictured unit(s).

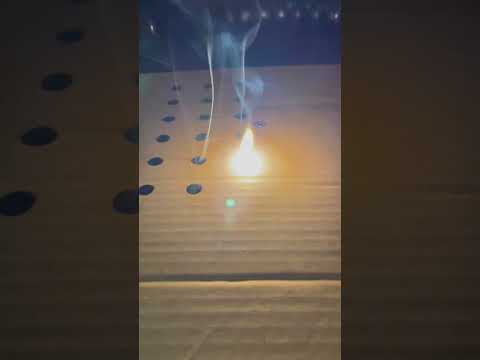

Notes: This lot is in good working condition as far as we can test. This came from a place where the previous owner was engraving cups and mugs. We do not have software to fully control the unit. We verified this card can control, this laser can lase, and this scanner can scan. See the video of a piece of cardboard having a grid of circles burned into it for testing. The guide beam works. The touch screen responds to user inputs. The fans run. No other testing was done.

Please NOTE: This lot is not ready to run! You will need a systems engineer, a control computer, software, and a safe enclosure to make a working laser system with these parts!
No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

(1) IPG Photonics YLR-30-Y11 Laser, with fiber
(1) Scanlab SCANCube 7 Scanhead
(1) Linos F-theta Ronar Lens
(1) Scanlab RTC5 Control Board
(1) Scanhead power/signal cables
(1) Key

Specifications:

30 Watts industrial fiber laser with scanning head, control card, fiber, and cables
Laser: IPG Photonics YLR-30-Y11
- Infrared Fiber Laser
- Max. average output power: 30W CW
- Red guide laser <1mW
- WD number: P35-000782
- Diode-pumped Ytterbium laser
- Wall plug efficiency typically >30%
- 19" rack mountable
- Single mode
- Randomly polarized
- Air-cooled
- Front-panel keyswitch and emergency off button
- Color touch LCD interface
- Collimated fiber end
- RS-232 and Ethernet communications
- Analog or digital controls
- Supply: 100-240V 1phase 50/60Hz 8A
Scanhead: Scanlab SCANcube 7
- 2-axis Scan System
- 7mm aperture
- Max. laser power: 100 Watts
- Angle transmitter of galvanometer scanners: analog position detector
- Repeatability: < 2 µrad (RMS)
- Power requirement: +/-15V DC
Lens: Linos F-theta Ronar
- Wavelength: 1064nm
- Lens focal length: f=420mm
- Fused silica optical glass for high power laser material processing
- Minimizes focus shift while providing high power density
- Low-absorption coated
Control board: Scanlab RTC5
- Intelligent, flexible control of scan systems, lasers, and peripheral devices in real time
- PCI interface

1064nm 30W laser

CDN Systems LLC, DBA Doug Deals, is not an authorized distributor or affiliated with the manufacturer of this product. Original manufacturer's warranty does not apply.
