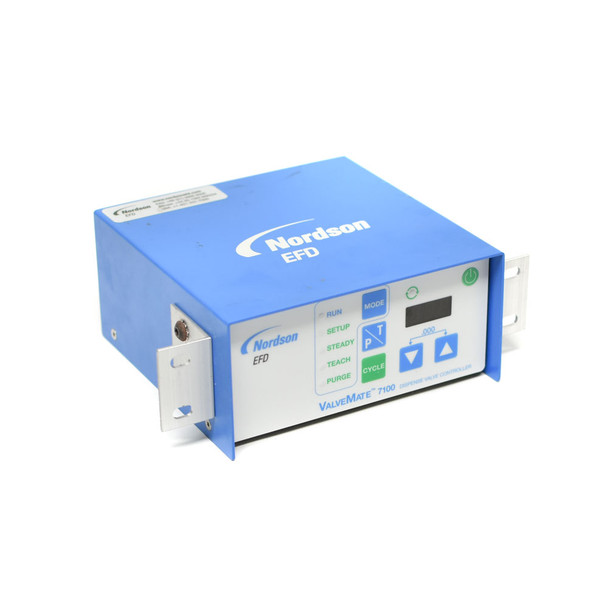

Nordson EFD ValveMate 7100 Dispense Valve Controller

Manufacturer: Nordson EFD

Model: ValveMate 7100

Condition: Used. Comes in non-original packaging. This dispense valve controller is in good condition with minor scuffs and scratches from previous use, but nothing that would affect functionality.
The photos show the exact item(s) the buyer will receive.

Notes: This dispense valve controller was hooked up to 24VDC and the buttons on the face of the unit were pressed. No further testing was performed.
No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) Nordson EFD ValveMate 7100 Dispense Valve Controller 24VDC

Specifications:

• Manufacturer: Nordson
• Model: ValveMate 7100, 7015340
• Description: Dispense Valve Controller
• Cabinet Size: 14.0 cm x 14.2 cm x 6.8 cm (5.5" W x 5.6" D x 2.7" H)
• Weight: 1.18 kg (2lbs 9oz)
• Electrical Power Input: 24VDC (+/- 5%), 0.63A maximum
• Electrical Input Connector: Switchcraft L722RA or equivalent, locking type
• External Power Adapter: NOT INCLUDED
  • 100-240 VAC (+/-10%),~ 50/60 Hz input, 24VDC (+/- 5%), 0.63 A output
  • Switchcraft S761K locking DC plug or equivalent, wall mount, changeable AC plugs
• Feedback Circuits: EOC Out & Alarm Out: Electronic switch, 24VDC, 100mA maximum.
• Initiate Circuits:
  • 5-24 INIT: 5-24VDC initiate signal.
  • CC INIT & Foot Switch: Dry contact initiate circuits, 19mA, closure current.
  • INIT signal duration: No less than 0.012 sec. momentary or maintained for steady.
• Cycle Rate: Exceeds 600 per minute
• Time Range: Programmable 0.001 to 99.9 seconds
• Product Classification:
  • Installation Category II
  • Pollution Degree

Hassle Free Returns

• DougDeals will pay return shipping if the item needs to be returned for any reason
• Return window is 30 days from delivery date
• See complete terms

CDN Systems LLC, DBA Doug Deals, is not an authorized distributor or affiliated with the manufacturer of this product. Original manufacturer's warranty does not apply.
