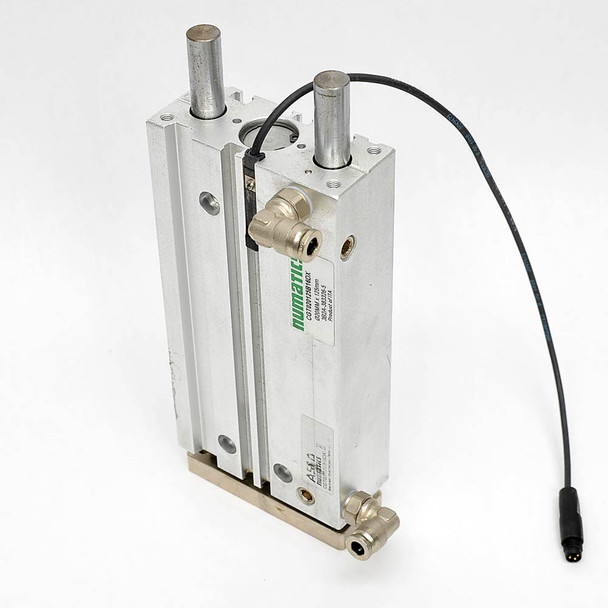

Numatics CGT020125B16DX 20mm Bore 125mm Stroke Guide Slide Air Cylinder

Manufacturer: Numatics

Model: CGT020125B16DX

Condition: Used. Comes in non-original packaging.  This actuator is in Fair cosmetic condition with minor blemishes from prior use including greasy resdiue on the guides and a worn/rubbed corner on the body that will not affect function. Cosmetic appearance may vary slightly from pictured unit(s).

Notes: This was removed from decommissioned equipment and not tested separately. No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) Numatics CGT020125B16DX Guided Cylinder

Specifications:

• Manufacturer: Numatics
• Model: CGT020125B16DX
• CGT-series Guide Slide
• Pneumatic linear actuator
• Dual guide shafts
• Bore: 20mm
• Stroke: 125mm
• Double-acting
• Bronze bushings
• Maximum operating pressure: 145PSI (10 Bar)
• 187N (6bar relative working pressure; extend)
• 141N (6bar relative working pressure; retract)
• Lightweight aluminum body
• Multiple mounting and piping options
• Hardened, ground, polished shafts
• Magnetic switch included (PNP)
• Metal one-touch quick release air tube fittings
