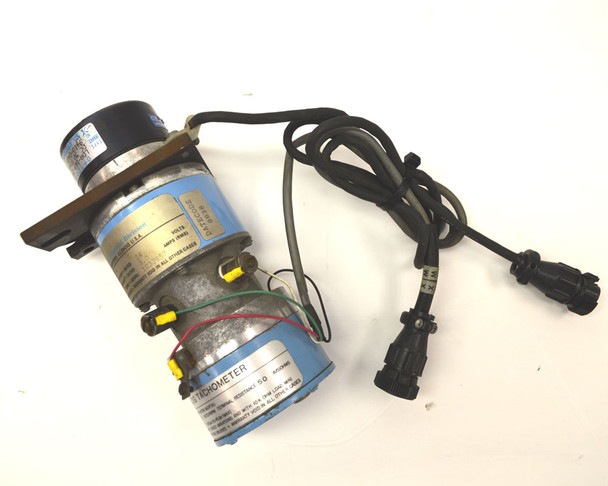

Pacific Scientific 22VM51-020 Motor Analog-Tach Encoder 24V Optical Torq:5.3

Manufacturer: Pacific Scientific

Model: 22VM51-020-6

Condition: Used. Comes in non-original packaging.  It has scuffs, scratches and some surface rust from normal use. The photos show the exact item(s) the buyer will receive.

Notes: This item was not tested by us, since we do not have the proper resources.

NOTE:  One of the power connectors has a partially broken end secure ring, as seen in the picture. No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) Pacific Scientific 22VM51-020-6 Motor Analog-Tach Encoder

Specifications:

• Optical Encoder:
  • Manufacturer:  Sumtak
  • Type:  LDA-169-254
  • Source:  DC 5V 80ma
  • Optical Encoder
• Motor:
  • Manufacturer:  Pacific Scientific
  • Cat. #:  22VM51-020-6
  • Torque:  Constant:  5.3  oz-in/amp
  • Rotor Inertia:  .00055  oz-in.sec2
  • Terminal Resistance:  3.6  ohms
  • Rated   24V
  • Rated  3.0  Amps (RMS)
  • Date Code:  8550
• Analog Tachometer:
  • Manufacturer:  Pacific Scientific
  • Voltage Constant:  2.5 volts/KRPM
  • Voltage Ripple:  3.0  %peak-to-peak
  • Terminal Resistance 50 (avg) ohms
