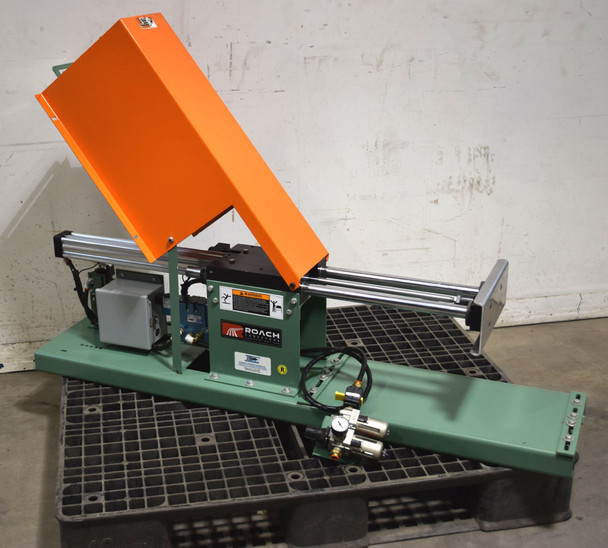

Roach Conveyor Pneu/Electric Box Pusher Primo Sort Extends:16" 75/Min Hi-Speed

Manufacturer: Roach Conveyors

Model: Primo Sort

Condition: Used. This item comes in non-original packaging.  It has scuffs and scratches from normal use. Cosmetic appearance may vary slightly from pictured unit(s).

Notes: This item was not fully tested since we do not have the proper resources.  Manually the cylinder(s) can be pulled out and pushed in the way they are now without any external sources connected to them.  When they are pulled out an external air source pushes them back in easily with no problems.  We did not test the electrical setup for this sorter.  No further testing was performed. No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) Roach Conveyor Pneu/Electric Box Pusher Primo Sort Extends:16" 75/Min Hi-Speed

Specifications:

• Sorter:
  • Manufacturer:  Roach Conveyors
  • Model:  Primo Sort
  • High Speed:
    • Up to 75 Sorts per Minute
  • Green Base:  57" x 12"
• Cylinder:
  • Manufacturer:  Parker
  • 4MA Series
  • Envelope Pressure:  250 psi Air
• Valve:
  • Manufacturer:  MAC
  • Model:  MV-A2B-A111-PM-591CA
• Pusher:
  • Dimensions:  12" x 5"
  • Extends:  16"
• Electrical:
  • +- 24VDC Single Solenoid
  • 2 Hall Effect Sensors
• Air Regulator & Filter:
  • Manufacturer:  SMC
  • Models:
    • AL30-N03-Z / AW30-N03-Z

30 Day Guarantee

• Guaranteed to be as described
• Can be returned for flaws or malfunctions that were not disclosed
• See complete terms

CDN Systems LLC, DBA Doug Deals, is not an authorized distributor or affiliated with the manufacturer of this product. Original manufacturer's warranty does not apply.
