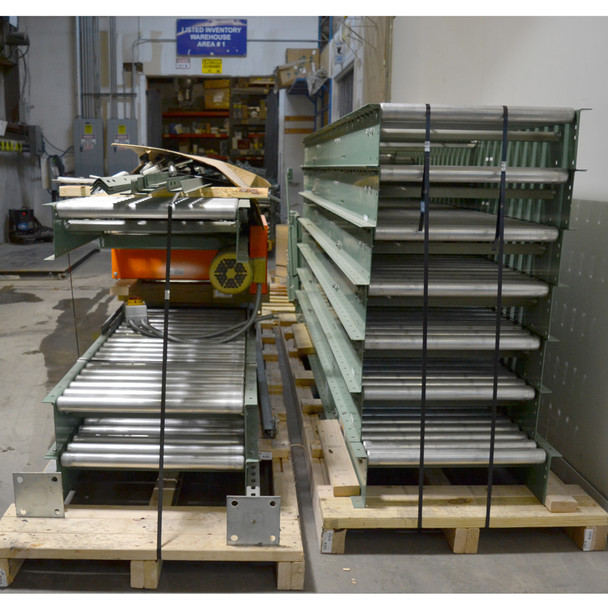

Roach / Innovative Conveyor Power Belt Roller Conveyor w/ Legs and Belt (87.4')

Manufacturer: Innovative Conveyor

Model: Does Not Apply

Condition: Used. This Conveyor is in good cosmetic condition with scuffs and scratches from regular industrial use.  The Conveyor System is complete and includes, Legs, the Belt, the Motor / Power System, Hardware, and Supports, and an inspection section of the conveyor that sat above the main conveyor.  Everything required to fully set up the conveyor is included. The photos show the exact item(s) the buyer will receive.

Notes: We confirmed that the sections are straight and true and that the rollers roll smoothly and freely.  No additional testing was performed. No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (87.4 Foot)  Roach / Innovative Conveyor Power Belt Roller Conveyor w/ Legs, Belt, Motor, and Hardware

Specifications:

• Manufacturer:  Roach / Innovative Conveyor Concepts
• Model:  Does Not Apply
• Description:  87.4 Feet of Belt Driven Conveyor w/ Legs, Motor, and Hardware.
  • (11) Individual Sections of Conveyor
    • (6) 108" Sections of Conveyor
    • (1) 111" Section of Conveyor (Roller Breaks attached)
    • (1) 107" Section of Conveyor
    • (1) 108' Section of Conveyor w/ Motor Drive and Control Switch
    • (1) 25" Inspection Stations - Short Section that sat up above conveyor
    • (1) 69" Section of Conveyor
  • Roller Width:  23"
  • Conveyor Total Width:  26"
  • Side Rail Height:  7"
  • Roller Diameter 1.9"
  • Heavy Duty Gauge Steel Measures .110 Inch Thick
  • Green Powdercoated Rails
  • SO NBR:  540015
  • Bed Joint 7
  • Mark:  P9A
  • (18) Sections of 1-1/2" Support Angle Iron
  • (24) Adjustable Legs Supports
  • (1) Full-Length Conveyor Belt
  • (2) Buckets of Screws, Bolts, and Hardware
  • Motor
    • Baldor Reliance Super-E Motor
    • VEM3546T
    • 1 HP
    • 230/460V
    • 3/1.5A
    • 1760 RPM
    • Frame 143TC
    • 60Hz
    • 3-Phase
    • SER. F. 1.5
    • Code L
    • DES. B
    • Class F
    • NEMA NOM. EFF>  85.5%
    • P.F. 71
    • 40C AMB-CONT
    • CC:  010A
    • Usable at 208V / 3.1
    • Bearings:  DE 6205
    • ODE:  6203
    • Encl:  TEFC
    • SN F1512170827
  • The total Length of the Conveyor does not include the inspection station which is 25" Long
