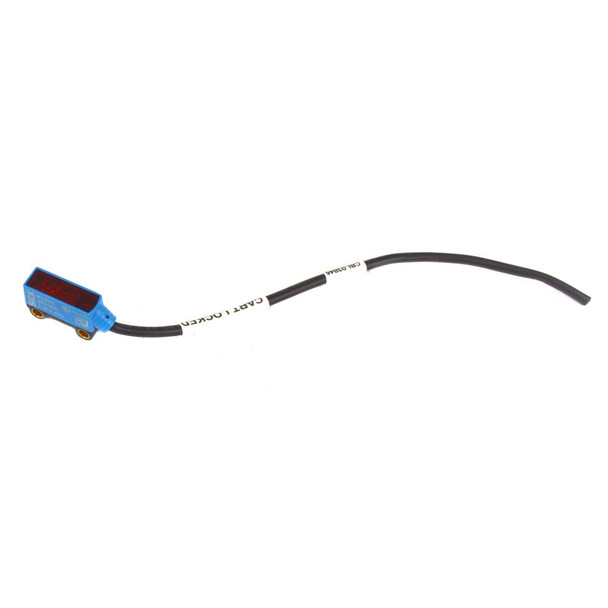

Sick WTB2S-2P1360 Minature Photoelectric Proximity Sensor 5mm - 60mm Visible Red

Manufacturer: Sick

Model: WTB2S-2P1360

Condition: Used. This Sensor is in good cosmetic condition with scuffs and scratches from regular industrial use and comes in non-original packaging.  The connector wire has been cut 5" below the sensor.
Cosmetic appearance may vary slightly from pictured unit(s).

Notes: This Sensor was removed from decommissioned equipment and has not been tested. No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1)  Sick WTB2S-2P1360 Minature Photoelectric Proximity Sensor 5mm - 60mm Visible Red

Specifications:

• Manufacturer:  Sick
• Model:  WTB2S-2P1360
• Description:  Minature Photoelectric Sensor
  • Functional principle    Photoelectric proximity sensor
  • Functional principle detail    Background suppression
  • Dimensions (W x H x D)    7.7 mm x 21.8 mm x 13.5 mm
  • Housing design (light emission)    Rectangular
  • Sensing range max.    1 mm ... 66 mm 1)
  • Sensing range    5 mm ... 60 mm 1)
  • Background suppression typ. from    70 mm
  • Type of light    Visible red light
  • Light source    PinPoint LED 2)
  • Light spot size (distance)    Ø 4.5 mm (40 mm)
  • Wavelength    640 nm
  • Adjustment    None
  • Special applications    Detecting small objects
  • Supply voltage    10 V DC ... 30 V DC 1)
  • Ripple    < 5 Vpp 2)
  • Current consumption    20 mA 3)
  • Switching output    PNP
  • Switching mode    Light switching
  • Output current Imax.    ≤ 50 mA
  • Response time    < 0.5 ms 4)
  • Switching frequency    1,000 Hz 5)
  • Connection type    Cable, 3-wire, 2 m 6)
  • Cable material    PVC
  • Cable diameter    Ø 3 mm
  • Circuit protection
    • A 7)
    • B 8)
    • D 9)
  • Housing material    Plastic, ABS/PC
  • Optics material    Plastic, PMMA
  • Enclosure rating    IP67
