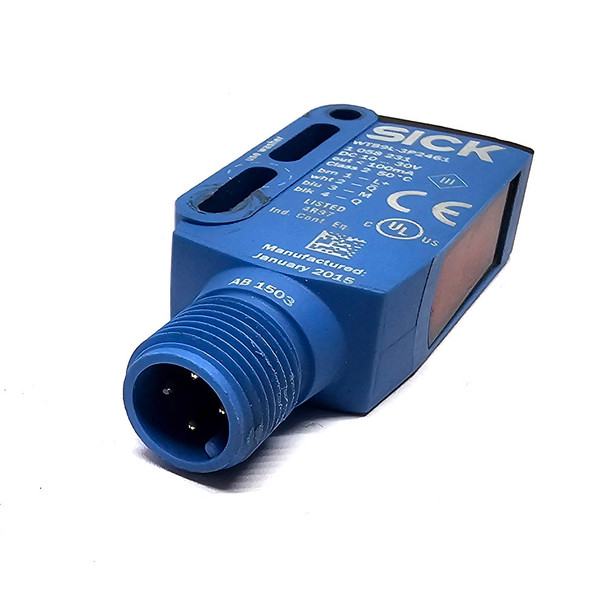

Sick WTB9L-3P2461 Proximity Sensor 25-300mm 10-30V

Manufacturer: Sick

Model: WTB9L-3P2461

Condition: Used. Comes in non-original packaging. This sensor is in good cosmetic condition with some scuffs and scratches from normal use and marks from previous mounting, but nothing too major or anything that would affect function. Cosmetic appearance may vary slightly from pictured unit(s).

Notes: This sensor was removed from a working automation setup that was being decommissioned.
No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) Sick WTB9L-3P2461 Proximity Sensor 25-300mm 10-30V

Specifications:

• Manufacturer: Sick
• Series: WTB9 Series
• Model: WTB9L-3P2461
• Part #: 1 058 231
• Body Style: Rectangular
• Connection Type: Connector M12
• Housing Material: VISTAL Plastic
• Light Source: Laser
• Measurement Range: 25-300 mm
• Operation: Light-ON
• Output: PNP Complementary
• Output Current: 100 mA
• Power Dissipation: 30 mA
• Sensing Mode: Background Suppression
• Sensing Range: 25 mm ... 300 mm (Object with 90 % reflectance (referred to standard white, DIN 5033))
• Special Features: Potentiometer, 5 turns
• Supply Voltage: 10-30 VDC
• Switching Frequency: 1000 Hz
• Type: Reflective Sensors
• Wave Length: 650 nm
