Sick WTT12L-B2561 Proximity Sensor 3800mm 1072611

Manufacturer: Sick

Model: WTT12L-B2561

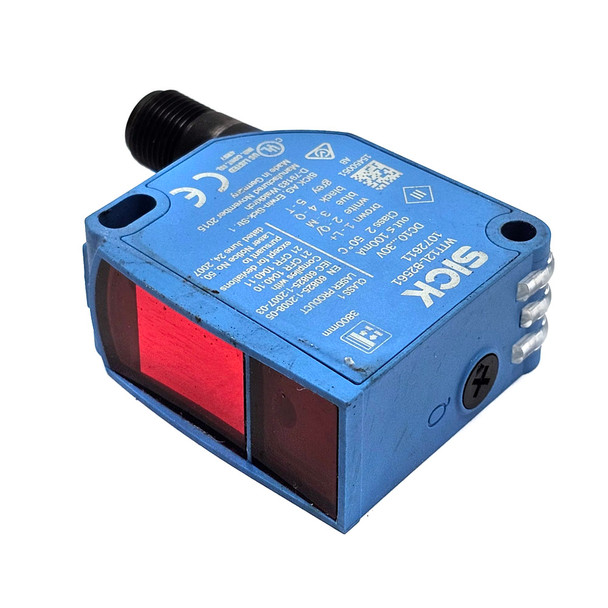

Condition: Used. Comes in non-original packaging. This sensor is in good cosmetic condition with some scuffs and scratches from normal use, but nothing too major or anything that would affect function.
Cosmetic appearance may vary slightly from pictured unit(s).

Notes: This sensor was pulled from a working automation system that was being removed from service.
No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) Sick WTT12L-B2561 Proximity Sensor 1072611

Specifications:

• Manufacturer: Sick
• Model: WTT12L-B2561
• Part #: 1 072 611
• Main function: Sensor (Photo-electric)
• Product series / family name: PowerProx
• Functions
  • Photo-electric proximity sensor
  • Potentiometer adjustment
• Design
  • class 1 laser
  • background suppression
• Distance: 3800mm nominal distance to light spot
• Supply voltage (DC): 10-30VDC (12VDC / 24VDC nom.)
• Sensing distance: 100mm - 3.8m
• Field of view: 18mm (light spot diameter)
• Frequency: 100Hz
• Light Color: Red
• Wavelength: 658 nm
• Shape: Rectangular
• Connection type: Pre-equipped with 5-pin M12 connector
• Protection functions
  • Reverse polarity
  • Short-circuit
  • Interference suppression
• Operating mode: Light/dark switching
• Digital Outputs:
  • 1 x digital output (Push-pull/PNP/NPN switching output; 100mA)
  • 1 x digital output (Push-pull transistor)
• Response time: 5ms / 0.005 s
• Degree of protection: IP67
• Dimensions: 23.5mm (W) x 76.0mm (H) x 55.8mm (D)
• Material
  • Plastic VISTAL (housing)
  • Plastic PMMA (optics material)
• Ambient air temperature for operation: -35...+50 °C
• Visual position indicator
  • yellow LED (output state)
  • green LED indicator (stability)
• Current consumption: 70mA
• Class: Class III
