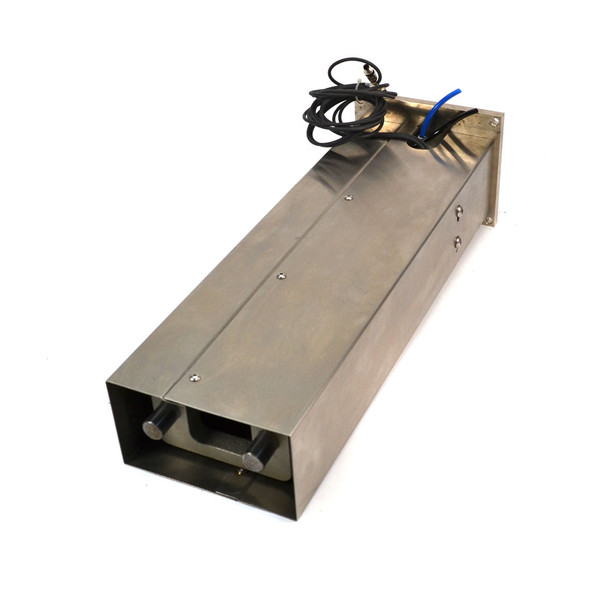

SMC MGGMF40-350 MGG Guided Cylinder 40mm Bore Size w/ Shielding/Cover

SKU:
X01O010
Shipping:
Calculated at Checkout
  • SMC MGGMF40-350 MGG Guided Cylinder 40mm Bore Size w/ Shielding/Cover
  • SMC MGGMF40-350 MGG Guided Cylinder 40mm Bore Size w/ Shielding/Cover
  • SMC MGGMF40-350 MGG Guided Cylinder 40mm Bore Size w/ Shielding/Cover
  • SMC MGGMF40-350 MGG Guided Cylinder 40mm Bore Size w/ Shielding/Cover
  • SMC MGGMF40-350 MGG Guided Cylinder 40mm Bore Size w/ Shielding/Cover
$149.29

Description

Manufacturer: SMC

Model: MGGMF40-350

Condition: Used. Comes in non-original packaging. This MGG Guided Cylinder is in good condition with minor scuffs and scratches from previous use. The photos show the exact item(s) the buyer will receive.

Notes: This MGG Guided Cylinder was removed from a working system and has not been tested since its removal. The head moves up and down as intended. No further testing was removed. No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

  • (1) SMC MGGMF40-350 MGG Guided Cylinder 40 mm Bore Size w/ Shielding/Cover

Specifications:

  • Manufacturer: SMC
  • Model: MGGMF40-350
  • Description: MGG Guided Cylinder
  • Guided Cylinder Type Dual Rod Slide Unit
  • Bore Diameter 40 mm
  • Stroke 350 mm
  • Piston Action Double-Acting
  • Mounting Type Flange
  • Rod Type Single Rod
  • Bearings Slide Bearing
  • Cushion Type Shock Absorber
  • Port Size 1/8 BSPT
  • Proof Pressure +1.5 Mpa
  • Operating Pressure Range +0.15 to +1 Mpa
  • Push Force at 100 psi 882 N
  • Pull Force at 100 psi 742 N
  • Operating Temperature Range -10 to +80 °C
  • Standards Met JIS
  • Overall Length 588 mm
  • Overall Width 186 mm
  • Overall Height 150 mm
  • Port Thread Standard BSPT
