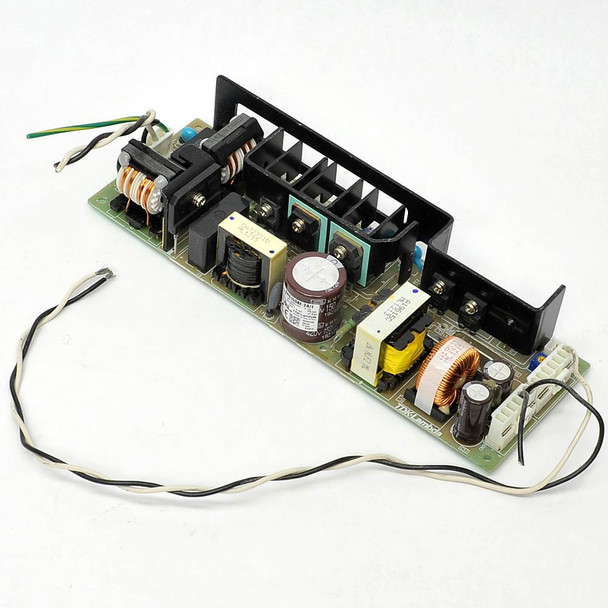

TDK-Lambda ZWS150AF-24 Open Frame Power Supply 24VDC 6.3A 150W Out 100-240VAC In

Manufacturer: TDK Lambda

Model: ZWS150AF-24

Condition: Used. Comes in non-original packaging.  This supply is in good cosmetic condition.  The connectors for input and output, with cut-off lengths of wire, are included for your benefit.
Cosmetic appearance may vary slightly from pictured unit(s).

Notes: This was removed from a decommissioned Keyence MD-V9900FA 3D laser marking system, and given a quick check to ensure it provides appropriate output voltage as shown (multimeter is not included in this sale).  No other testing was done.
No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) TDK-Lambda ZWS150AF-24 Power Supply

Specifications:

• Manufacturer: TDK-Lambda
• Model: ZWS150AF-24
• Open Frame Power Supply
• Without enclosure
• Universal input 85-265VAC 47-63Hz 2.1A or 120-370VDC
• DC output: 24V 6.3A (7.5A peak)
• Power rating: 150 Watts (180W peak)
• Dimensions: 222 x 75 x 40 mm
• ZWS-AF series regulated DC converter
• Single output
• Power factor corrected
• Input transient protected
• Adjustable output: 21.6 to 26.4V
• Efficiency rating: 82%
