Description

Manufacturer: MPM

Model: DOES NOT APPLY

Condition: Used. Comes in non-original packaging. This item is in Fair cosmetic condition with minor scuffs/scratches and some greasy residue especially on the rails, from prior use. The photos show the exact item(s) the buyer will receive.

Notes: This was removed from a decommissioned MPM speedline screen printer, where it formerly held a 12" long circuit board conveyor. The screw turns by hand with moderate fingertip pressure and drives the stage along. No other testing was done. No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

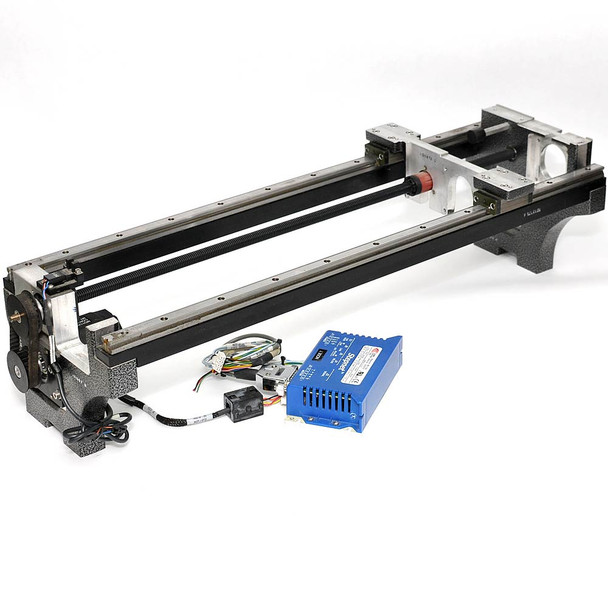

(1) MPM Linear Motion Module

Specifications:

Linear motion module
Travel as shown approximately 48 cm maximum
Travel with stop removed maybe up to 53cm
Step motor drives a screw
(2) linear motion guide rails, (1) bearing per rail
Thick and swoopy aluminum mounting brackets
Aluminum rail supports
Aluminum motor mount
(1) optical end limit switch
(1) travel stop with rubber bushing
Belt drive
Carriage and non-motor end both have mounts that could accept an identical motor
Linear rails: THK SR15
Rail length, each: 62 cm
Rail separation: 17.5 cm center to center
Swoopy-bracket foot-mounting bolt pattern: 60cm x 8 cm
Rail height from mounting plane: 15cm
Bracket on motor end swoops to "RIGHT" side
Top of carriage and top of brackets from mounting plane: 17.2cm
Screw pitch: 5 turns/cm
Screw has ball-bearing end support
Motor: Danaher Motion M22NSHB-LNN-NS-02
- Powermax II series
- 70 watts
- 4.6A
- 1.8º step motor
- Vs: 24V
- Rated speed: 1500RPM
Motor drive: Copley Controls Corp. 800-1543
- StepNet series stepper control
- Input: 20-75VDC 8A
- Output: to 75V, 5A continuous, 7A peak
- Drives (1) motor

Bracket swoops to the right
