Windy City Wire 4461030-S 487ft Smartwire 4-Element Access Plenum Control Cable

Manufacturer: Windy City Wire

Model: 4461030-S

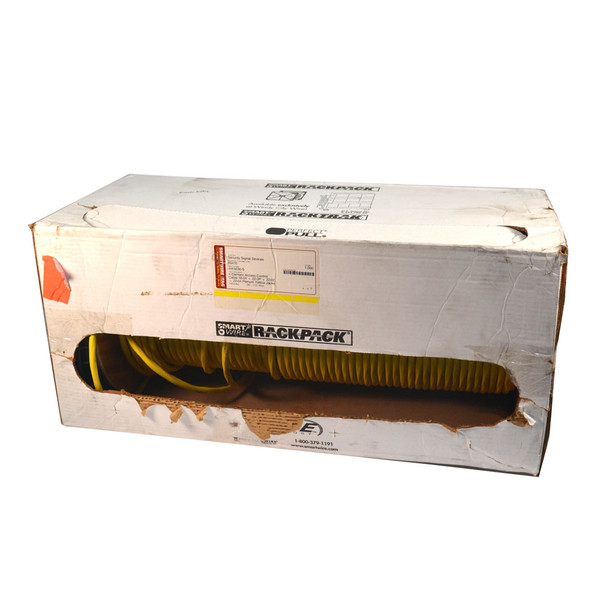

Condition: New Other. Comes in original packaging. The box has been ripped open but the wire inside is in good condition. The photos show the exact item(s) the buyer will receive.

Notes: We hooked both ends of the wire up to a wire length tester to determine the length. No further testing was performed. No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) Windy City Wire 4461030-S 487ft Smartwire 4-Element Access Plenum Control Cable

Specifications:

• Manufacturer: Windy City Wire
• Model: 4461030-S
• Description: Smartwire 4-Element Access Plenum Control Cable
• DESCRIPTION Elem1:18 AWG 4 Conductor Bare Copper White Jacket with Purple Stripe;
• Elem2:22 AWG 3 Pair OAS Bare Copper White Jacket with Yellow Stripe;
• Elem3:22 AWG 2 Conductor Bare Copper White Jacket with Green Stripe;
• Elem4:22 AWG 4 Conductor Bare Copper White Jacket with Red Stripe
• Plenum Composite Cable, C(UL)US CMP
• CONDUCTOR Element 1: 18 AWG 7 Strand Bare Copper;
• Element 2, 3, and 4: 22 AWG 7 Strand Bare Copper
• INSULATION All Elements: .008" Low Smoke PVC
• COLOR CODE Element 1: Black/Red/White/Green
• Element 2: Black/Red; White/Green; Brown/Blue
• Element 3: Black/Red
• Element 4: Black/Red/White/Green
• SHIELD Element 1,3, & 4: N/A; Element 2: Overall Aluminum Mylar
• DRAIN WIRE Element 1,3 & 4: N/A; Element 2: 24 AWG 7 Strand Tinned Copper
• JACKET Inner Jackets: All Elements: Low-Smoke PVC .018"; Outer Jacket: Low-Smoke PVC .020"
• JACKET COLOR Yellow Jacket
• MARKING Elem1: LOCK POWER A B C D E 0 1 2 3 4 5 6 7 8 9; Elem2: CARD READER A B C D E 0 1 2 3 4
• 5 6 7 8 9; Elem3: DOOR CONTACT A B C D E 0 1 2 3 4 5 6 7 8 9; Elem4: REX/SPARE A B C D E
• 0 1 2 3 4 5 6 7 8 9 Outer Jacket: SMARTWIRE ACCESS CONTROL CABLE DOOR / ZONE A B C D
• E 0 1 2 3 4 5 6 7 8 9 C(UL)US CMP ROHS MADE IN THE USA
• OVERALL DIAMETER Elem1: .184" Nom.; Elem2: .207" Nom.; Elem3: .126" Nom.; Elem4: .145" Nom; Outer
• Jacket: .415" Nom.
• CABLE WEIGHT 108 Lbs/Mft.
• CAPACITANCE Elem 1: 27 pF/Ft. Nom.; Elem 2: 51 pF/Ft. Nom.; Elem 3: 20 pF/Ft. Nom.; Elem 4: 20 pF/Ft.
• IMPEDANCE Elem 1: 70 Ohms; Elem 2: 27 Ohms; Elem 3: 94 Ohms; Elem 4 96 Ohms
• DC RESISTANCE Element 1: 6.66 Ohms/Mft. maximum @ 20 C
• Element 2: 16.9 Ohms/Mft. maximum @ 20 C
• Element 3: 16.9 Ohms/Mft. maximum @ 20 C
• Element 4: 16.9 Ohms/Mft. maximum @ 20 C
• TEMPERATURE RATING 0 C to 75 C / 300 Volt
